Type of Product
|

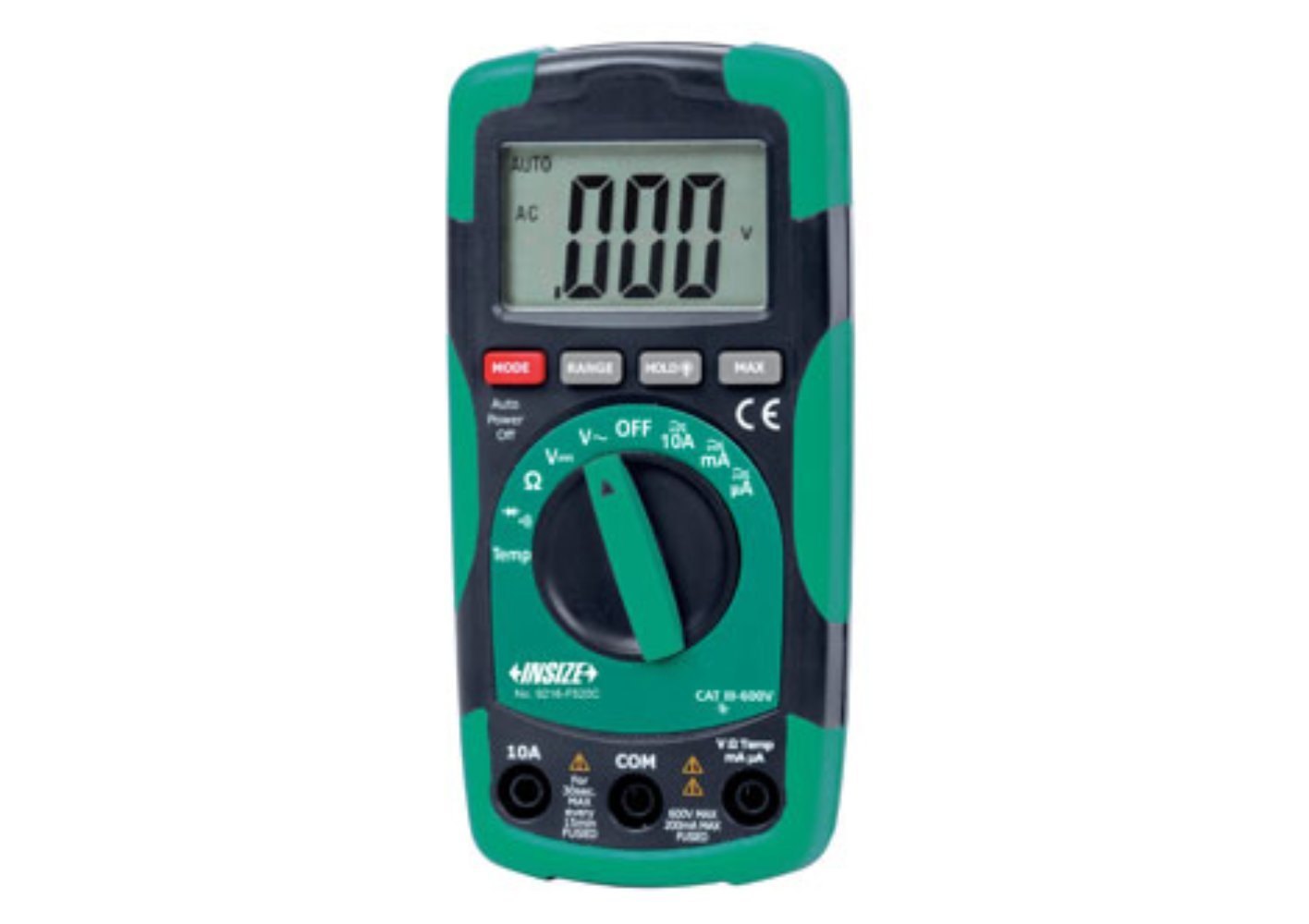

Digital Multimeter
|
Model No
|
9216-F520
|
Country of Origin
|
India
|
Display Type
|
2000 Counts Digital Display
|
Power Supply
|
9V Battery
|
Resistance
|
200 Ω to 20 MΩ
|
Weight
|
255 g
|
DC Current
|
200 µA to 10 A
|
Voltage (AC)
|
200 mV to 600 V
|
AC Current (A)
|
200 µA to 10 A
|
Continuity Check
|
Less than 100 Ω
|
Diode Test
|
Test current: 0.3mA typical,1mV,±(10%+5d)
|
Dimension
|
150x70x48 mm
|
Voltage (Dc)
|
200 mV to 600 V
|
