Type of Product
|

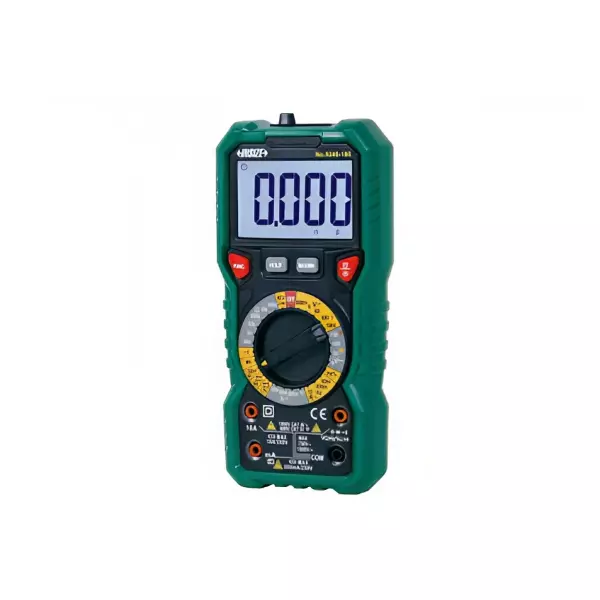

Digital Multimeter
|
Model No
|
9246-180
|
Country of Origin
|
India
|
Power Supply
|
2x1.5V AA Batteries
|
Frequency
|
10 Hz to 10 MHz
|
Resistance
|
600 Ω to 60 MΩ
|
Weight
|
424 g
|
Duty Cycle
|
1-99%
|
DC Current
|
60 µA to 10A
|
Voltage (AC)
|
6 V to 750 V
|
Capacitance
|
10 nF to 100 mF
|
AC Current (A)
|
60 mA to 10A
|
Continuity Check
|
Less than 30 Ω
|
Diode Test
|
Measurement: Forward DC current 2.5mA, reverse DC voltage 3.0V
|
Dimension
|
188x88x50 mm
|
Voltage (Dc)
|
600 mV to 1000 V
|
Included Components
|
With Jack Indicator Light
|
